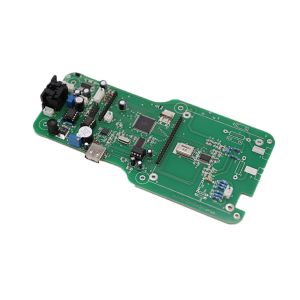

HASL/HASL-LF,OSP,ENIG PCB&PCBA Board Assembly FR4 Multilayer PCB Board
Abis Circuits Co., Ltd, a professional PCB manufacturer which was established on Oct, 2006. Focus on double side, Multilayer and HDI pcb mass production.
We have two factories together. The factory in Shenzhen is specialized in small and middle volume orders. Another in Jiangxi province is for big volume and HDI.
ABIS PCBA Projects Introduction
ABIS CIRCUITS Company deliver services, not only products. We offer solutions, not only goods.
From the PCB production, the components purchasing to the components assemble. Includes:
- PCB Custom
- PCB drawing / design according to your schematic diagram
- PCB manufacturing
- Component sourcing
- PCB Assemble
- PCBA 100% test
Capacity
-PCBA | Capacity | | | Single and double-sided SMT/PTH | Yes | | Large parts on both sides, BGA on both sides | Yes | | Smallest Chips size | 0201 | | Min BGA and Micro BGA pitch and ball counts | 0.008 in. (0.2mm) pitch, ball count greater than 1000 | | Min Leaded parts pitch | 0.008 in. (0.2 mm) | | Max Parts size assembly by machine | 2.2 in. x 2.2 in. x 0.6 in. | | Assembly surface mount connectors | Yes | | Odd form parts: | Yes, Assembly by hands | | LED | | Resistor and capacitor networks | | Electrolytic capacitors | | Variable resistors and capacitors (pots) | | Sockets | | Reflow soldering | Yes | | Max PCB size | 14.5 in. x 19.5 in. | | Min PCB Thickness | 0.2 | | Fiducial Marks | Preferred but not required | | PCB Finish: | 1. SMOBC/HASL | | 2. Electrolytic gold | | 3. Electroless gold | | 4. Electroless silver | | 5. Immersion gold | | 6. Immersion tin | | 7. OSP | | PCB Shape | Any | | Panelized PCB | 1. Tab routed | | 2. Breakaway tabs | | 3. V-Scored | | 4. Routed+ V scored | | Inspection | 1. X-ray analysis | | 2. Microscope to 20X | | Rework | 1. BGA removal and replacement station | | 2. SMT IR rework station | | 3. Thru-hole rework station | | Firmware | Provide programming firmware files,Firmware + software installation instructions | | Function test | Level of testing required along with test instructions | | PCB file: | PCB Altium/Gerber/Eagle files (Including specs such as thickness, copper thickness, solder mask colour, finish, etc) | |
-PCB
| Layers | 1~20 | | Board Thickness | 0.1mm-8.0mm | | Material | FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base, etc | | Max Panel Size | 600mm×1200mm | | Min Hole Size | 0.1mm | | Min Line Width/Space | 3mil(0.075mm) | | Board Outline Tolerance | 0.10mm | | Insulation Layer Thickness | 0.075mm--5.00mm | | Out Layer Copper Thickness | 18um--350um | | Drilling Hole (Mechanical) | 17um--175um | | Finish Hole (Mechanical) | 0.10mm--6.30mm | | Diameter Tolerance (Mechanical) | 0.05mm | | Registration (Mechanical) | 0.075mm | | Aspect Ratio | 16:01 | | Solder Mask Type | LPI | | SMT Mini. Solder Mask Width | 0.075mm | | Mini. Solder Mask Clearance | 0.05mm | | Plug Hole Diameter | 0.25mm--0.60mm | | Impedance Control Tolerance | 10% | | Surface finish | ENIG, OSP, HASL, Chem. Tin/Sn, Flash Gold | | Soldermask | Green/Yellow/Black/White/Red/Blue | | Silkscreen | Red/Yellow/Black/White | | Certificate | UL, ISO 9001, ISO14001, IATF16949 | | Special Request | Blind hole, Gold finger, BGA, Carbon ink, peelable mask, VIP process, Edge plating, Half holes | | Material Suppliers | Shengyi, ITEQ, Taiyo, etc. | | Common Package | Vacuum+Carton | |
Our Advantages
- High-end euipment-high speed Pick and Place Machines that can process about 25,000 SMD components per hour
- High efficient supply ability 60K Sqm monthly-Offers low volume and on-demand PCB production, also large-scale production
- Professional engineering team-40 engineers and their own tooling house, strong at OEM. Offers two easy options: Custom and Standard-In-depth knowledge of IPC Class II and III Standards
We provide a comprehensive turn-key EMS service to customers who want us to assemble the PCB into PCBA, including prototypes, NPI project, small and medium volume. We are also able to source all components for your PCB assembly project. Our engineers and sourcing team have rich experience in supply chain and EMS industry, with deep knowledges in SMT assembly allowing to resolve all the production issues. Our service is cost-effective, flexible, and reliable. We have satisfied customers across many industries including medical, industrial, automotive and consumer electronics.
Quality Control
- IOC incoming inspection
- SPI solder paste inspection
- Online AOI inspection
- SMT first article inspection
- External assessment
- X-RAY-welding inspection
- BGA device rework
- QA inspection
- Anti-static warehousing and shipment
- Persue 0% complaint on quality
- All department implements according to ISO and the related dept has to provide 8D report if any board scrapped to defective.
- All the outgoing boards have to be 100% electronic tested, impedance tested and soldering.
- Visual inspected, we make the inspect microsection before shipment.
- Train the mindset of employees and our enterprise culture, make they happy with their work and our company, it's helpful for them to produce good quality products.
- High quality raw material (Shengyi FR4, ITEQ, Taiyo Solder Mask Ink etc.)
- The AOI could inspect the whole set, boards are inspected after each process
Lead Time:
| Category | Q/T Lead time | Standard Lead Time | Mass Production |
| |
| 2 Layers | 24hrs | 3-4 working days | 8-15 working days |
| |
| 4 Layers | 48hrs | 3-5 working days | 10-15 working days |
| |
| 6 Layers | 72hrs | 3-6 working days | 10-15 working days |
| |
| 8 Layers | 96hrs | 3-7 working days | 14-18 working days |
| |
| 10 Layers | 120hrs | 3-8 working days | 14-18 working days |
| |
| 12 Layers | 120hrs | 3-9 working days | 20-26 working days |
| |
| 14 Layers | 144hrs | 3-10 working days | 20-26 working days |
| |
| 16-20 Layers | Depends on the specific requirements |
| |
| 20+ Layers | Depends on the specific requirements |
Pre-Sale and After-Sale Service
1 Hour quotation
2 hours complaint feedback
7*24 hour technical support
7*24 order service
7*24 hour delivery
7*24 production run
FAQ
Q1: When can I get the quotation?
A: We usually quote with 1 hour after we get your inquiry. If you are very urgent, please call us or tell us in your email.
Q2: Can you provide free samples for me?
A: Free samples depend on your order quantity.
Q3: I am a small wholesaler, do you accept small order?
A: It's no problem. If you're small wholesaler, we would like to grow up with you together.
Q4: How many days will samples be finished? And how about the mass production?
A: Generally 2-3 days for samples making. The lead time of mass production will depend on the order quantity and the season you place the order.
Q5: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
Q6: How can we know the processing about PCB order?
A: Each Customer will have a sale to contact with you. Our working hours: AM 9:00-PM 19:00(Beijing Time) from Monday to Friday. We will reply your email as soon as quickly during our working time. And you also could contact with our sales by cellphone if urgent.
Q7: Can I have samples to test?
A: Yes, we are pleased to supply module samples to test and check quality, mixed sample order is available. Please note buyer should pay for shipping cost.
Q8: Can you design pcb and make files for us?
A: yes,We have a professional drawing engineers' team that you can trust.
Q9: If all pcb , PCBAs will be tested before delivery if we provide the function testing method?
A: Yes, we ensure that each piece of pcb, PCBA will be tested before shipment, we ensure the goods we sent with good quality
Q10: What is the shipping method?
A: We suggest you using DHL, UPS, FedEX, TNT forwarder.
Q11: How about the payment terms?
A: By T/T, Paypal, Western Union, etc.
Please keep us informed for any interest!
ABIS cares every your order even 1 piece!
